Catching Waves on Mars

UMD Researchers Help Make First Observation of Seismic Surface Waves on Another Planet, Offering Clues to Interior Structure

By Maryland Today Staff


A seismometer (lower left) placed on Mars by the InSight lander captured evidence of the first seismic waves propagating on the surface of a planet other than Earth. Meteorite strikes last year set off marsquakes that caused the waves.

Photo by NASA/JPL-Caltech

A team including University of Maryland geologists observed seismic waves spreading along the surface of a planet other than Earth for the first time.

The research stems from marsquakes caused by two large meteorites that plowed into Mars last December, as recorded by NASA’s InSight lander and analyzed at ETH Zurich in collaboration with the InSight Science Team.

Published today in the journal Science, the team’s paper provides new insights into the structure of the Martian crust, bringing scientists closer to learning how the planet formed and evolved over time.

Of the recorded waves, the study’s lead author, Doyeon Kim, said that despite the placement of surface-based seismology sensors, “not even the Apollo missions to the moon managed it.” Kim is a visiting assistant professor in the UMD Department of Geology and senior assistant at the ETH Institute of Geophysics.

After almost three years of detecting only seismic waves traveling through the body of Mars, the InSight team finally observed surface waves after atypical marsquake readings led the researchers to suspect the sources were near the surface. They compared the data with information from the Mars Reconnaissance Orbiter, and images from the orbiter confirmed that both meteorite impacts created hypocenters (the point of origin for a quake) on the surface of Mars.

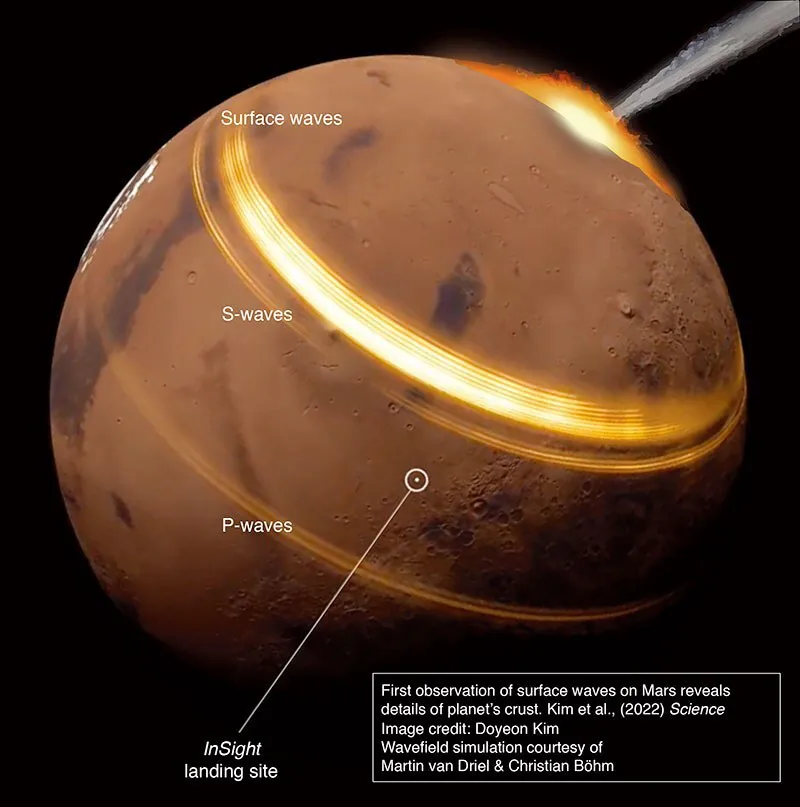

Image of Mars showing surface waves, S-waves, P-waves and InSight landing site.

“Before this, all our knowledge of the Martian crust was based on what was right below the InSight lander,” said UMD Associate Professor of Geology Vedran Lekic, a co-author of the paper. “But Mars is a big planet. We didn’t know if the crust was different in other locations across the planet. With these surface waves, we were finally able to obtain a better understanding of the crust along a big stretch of Mars.”

A planet’s crust, or its outermost solid shell, provides important clues about how that planet formed and evolved over time. Most, including those of Earth and Mars, formed through early dynamic processes in the mantle and were later modified by other events such as volcanism, sedimentation, erosion and impact cratering. As a result, crusts can give researchers information about the land-shaping conditions on a planet billions of years ago.

To learn more about Mars’ crust, the research team analyzed the velocity of surface waves coming from the two meteorite impacts. This allowed them to exploit the relationship between surface wave velocity, frequency and depth to estimate the average properties of the crust 3 to 18.6 miles below the surface of Mars.

On average, the Martian crust between InSight’s seismometer and the two meteorite impact sites did not vary strongly with depth, and it had faster seismic velocity than in previous observations directly below the lander.

“The composition of the crust will determine some of the density, but so will factors like porosity; if you have a lot of holes in the crust, it can also decrease the density of the material,” said UMD Associate Professor of Geology Nicholas Schmerr, another co-author of the paper. “A volcano, with all its intrusions and magma coming up through the crust beneath it, would have also altered the crust density and composition in that region..”

The team’s findings may also provide answers to a centuries-old mystery: the crustal dichotomy of Mars.

“Mars has a very unique feature, which is the very sharp contrast between its Northern and Southern hemispheres,” Lekic noted. “The southern part is really old, has high topography and is very heavily cratered. Meanwhile, the northern region is volcanic, very low-lying and has comparatively few craters. The surface waves we detected helped us learn more about the northern lowlands, which we’ve only been able to speculate about before.”

One popular theory behind this is that the crusts in the northern lowlands and southern highlands are composed of different materials. The researchers found that their initial results appear to disprove this idea, however, even suggesting the crust structures may be surprisingly similar at certain depths.

Georgia Jiang contributed to this article, which is adapted from text provided by ETH Zurich.
