Electrons Take New Shape Inside Unconventional Metal

UMD Discovery Could Contribute to Research on Noise Problem in Quantum Computers

By Dina Genkina

yellow and blue shapes depicting the striking angle dependence of electron quantum oscillations detected in YPtBi

The striking angle dependence of electron quantum oscillations detected in YPtBi is depicted in an artistic rendering. A UMD group’s research uncovered unexpected behavior of electrons in the metal, and raises the possibility of advances in quantum computer construction.

Rendering by Johnpierre Paglione/QMC

One of the biggest achievements of quantum physics was recasting our vision of the atom. The early 1900s conception of a solar system in miniature, with electrons looping around a solid nucleus, gave way to a vision of the particles meandering around the nucleus in clouds similar to tiny balloons. Known as atomic orbitals, the balloons come in all sorts of shapes—perfectly round, two-lobed, cloverleaf. The number of lobes in the balloon signifies how much the electron spins about the nucleus.

That’s how it works for individual atoms, but when they come together to form something solid—a chunk of metal, say—the outermost electrons in different atoms can link arms and lose sight of the nuclei they came from, forming many oversized balloons that span the chunk of metal. No longer spinning, the electrons flow through the metal to carry electrical currents, shedding the diversity of multilobed balloons.

Now, researchers at the Quantum Materials Center (QMC) at the University of Maryland, in collaboration with theorists at UMD’s Condensed Matter Theory Center (CMTC) and Joint Quantum Institute, have produced the first experimental evidence that one metal—and likely others in its class—have electrons that manage to preserve a more interesting, multilobed structure as they move around in a solid. They experimentally studied the shape of these balloons and found not a uniform surface, but a complex structure.

This unusual metal—yttrium platinum bismuth (YPtBi)— could also prove useful for building quantum computers that are resistant to noise. The researchers published their findings recently in the journal Physical Review Research.

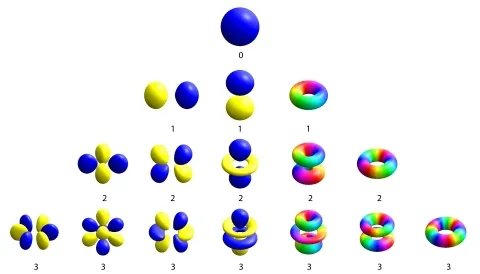

Atomic orbitals at different angular momentum values (labeled with numbers)
Atomic orbitals at different angular momentum values (labeled with numbers) form a variety of shapes. Adapted from Geek3, CC BY-SA 4.0, via Wikimedia Commons

“When I first discovered this, I was so excited,” said lead author Hyunsoo Kim, a former postdoctoral researcher at QMC and now an assistant professor at the Missouri University of Science and Technology. “But it took years to fully study, because it's not a conventional concept and also experimentally very challenging to collect high-quality data.”

The team discovered in 2011 that YPtBi could become a superconductor. (Some materials become superconductors at extremely low temperatures, losing all resistance to electrical current.) YPtBi was an unlikely candidate, because it has many fewer mobile, current-carrying electrons than typical superconductors. But, to the researchers’ surprise, it became superconducting anyway—and the way it behaved when exposed to a magnetic field provided evidence that it was not an ordinary one.

At the time, the researchers suspected that the shape of the electron orbitals was to blame and concluded that electrons that spin about themselves and trace out more circles in space—that is, electrons with higher angular momentum—were forming an unprecedented state of superconductivity.

“We had what I would call circumstantial evidence that the superconductivity is made up of these higher angular momentum electron pairs,” said Johnpierre Paglione, a professor of physics at UMD, the director of QMC and the head of the experimental group in this collaboration. “But there was really no direct evidence of these high angular momentum electrons.”

To gather more direct evidence in the new experiments, the team raised the temperature and studied YPtBi in its normal, non-superconducting state. Then, they performed a classic measurement that maps out something akin to the collective atomic orbital for all the electrons floating around in the metal.

Peering inside a metal, one sees atoms arranged in neat repeating grids, called a crystal lattice. In a crystal, the atomic orbitals of the outermost electrons morph into one another. This allows the electrons to travel far from their original nucleus and carry current through the metal. In this solid setting, a version of orbital balloons still exists, but it’s more common to visualize them not in space—where there are many huge and unwieldy orbitals—but as a function of the speed and direction of the traveling electrons. The fastest-moving electrons in the crystal form their own balloon, a collective analog of atomic orbitals known as a Fermi surface.

The shape of the Fermi surface reflects the structure of the underlying crystal, which usually bears no resemblance to the orbital structure of single atoms. But for materials like YPtBi with very few mobile electrons, the Fermi surface is not very big. Because of this, it retains some of the properties of electrons that hardly move at all, which sit at the center of the Fermi surface.

“The fact that nature figures out counterintuitive atomic arrangements that allow the Fermi surface to retain signatures of the atomic orbitals is rather cool and intricate,” said JQI Co-director and Fellow Jay Deep Sau, an associate professor of physics at UMD and a theoretical collaborator on the new paper.

To uncover this counterintuitive Fermi surface, the researchers stuck a YPtBi crystal inside a magnetic field and measured the current flowing through the crystal as they tuned the field. By rotating the direction of the magnetic field, they were able to map out the speed of the fastest electrons in every direction. They found that, akin to a higher angular momentum atomic orbital, the Fermi surface has a complex shape, with peaks and troughs along certain directions. The high symmetry of the crystal itself would normally lead to a more uniform, ball-like Fermi surface, so it was a surprise to find a more complicated structure. This pointed to the possibility that the collective electrons were exhibiting some of the higher angular momentum nature of atomic orbitals.

Indeed, theoretical calculations by the CMTC team showed that the experimental results matched up with a high angular momentum model, leading the team to claim the first experimental observation of a high-angular momentum metal.

The team cautioned that even this experimental evidence could still be incomplete. What they measured depends not only on the Fermi surface but also on other properties of the electrons, such as their effective mass and the distribution of their velocities. In its work, the team systematically studied the angular dependence of these other quantities and demonstrated that it would be extremely unlikely for them to cause the observed peaks and troughs.

In addition to being fundamentally novel, this higher angular momentum metal has potential applications for quantum computing. There are predictions that some exotic superconducting states could give rise to properties that are unaffected by the noise that happens at any one point. These properties might be able to encode quantum bits, potentially allowing for the creation of quantum computers that are much more robust.

“There's many pieces to the puzzle of understanding exactly what kind of superconductor you have and whether you can exploit it to do quantum computation,” said Paglione. “There are some experimental challenges to get the rest of the pieces of the puzzle. But I think we're a good chunk of the way there.”
